Cameras · CS-VN301-AI

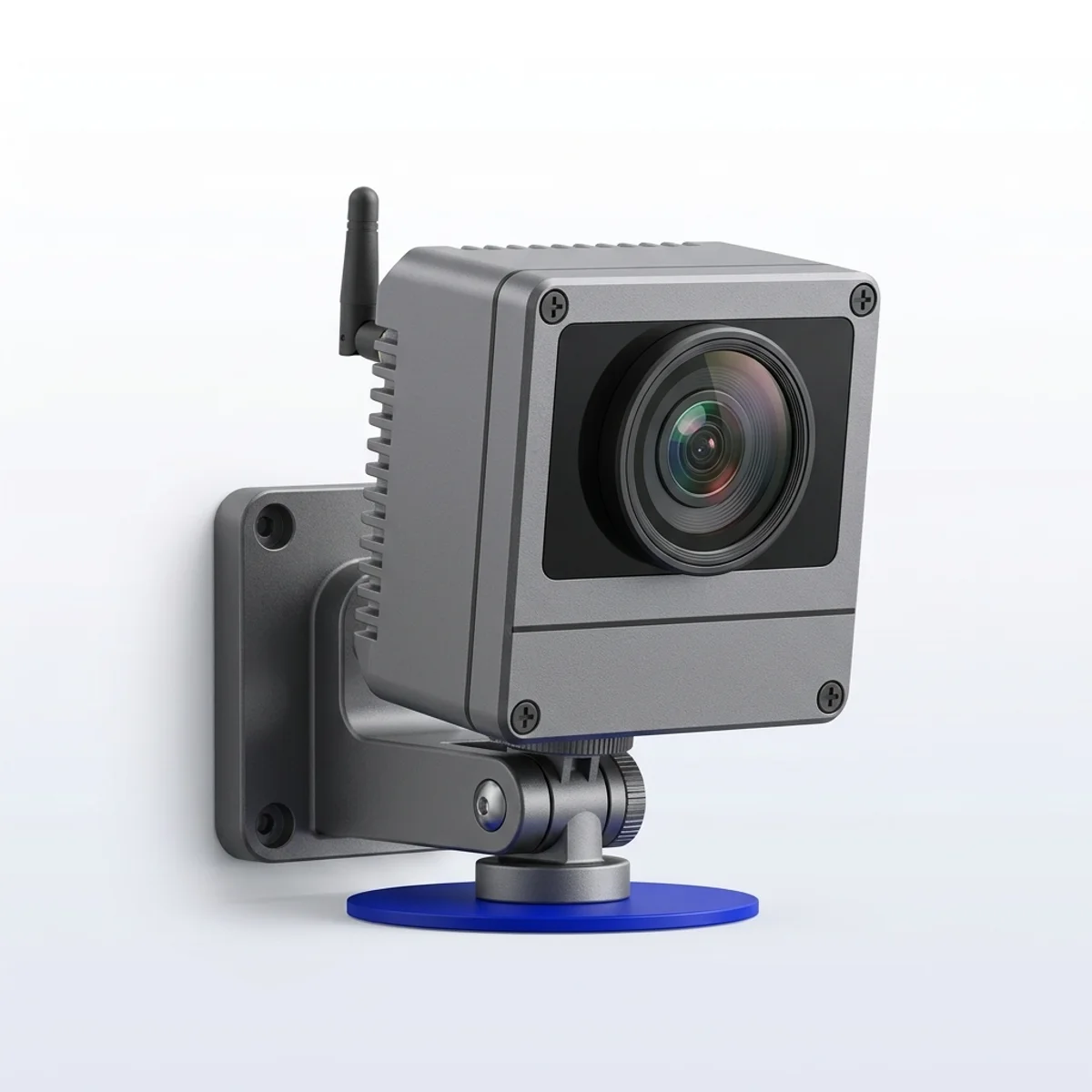

AI Vision Node 301
Counts, detects and alerts on the device.
The same rugged shell with a neural accelerator behind the lens. It runs detection at video rate on the node and sends structured events, not footage: headcount at the gate, vehicles through the entry, PPE and exclusion-zone checks, after-hours movement.
Specification
What it is
- 4 MP with hardware ISP, 51°, 88° or 137° lens
- On-device detection, 720p at 25 fps; models swapped from the browser
- 80-class detector out of the box; PPE, person, vehicle and plant models for sites
- Structured events over MQTT and JSON: counts and classes, not video
- PoE, USB-C or solar and battery; 4G LTE or Wi-Fi to the base station
- Timelapse capture runs alongside detection, every 1 to 60 minutes, interval changed remotely from the office or by HQ
- IP67, −20 °C to +50 °C
Included
What comes with it
- Live gate and zone counts on the site dashboard
- After-hours movement alerts with the frame attached
- PPE and exclusion-zone checks, flagged as they happen (advisory, never a safety system)
- Everything the Timelapse Node includes
